S-Flex for Expansion Joint Replacements

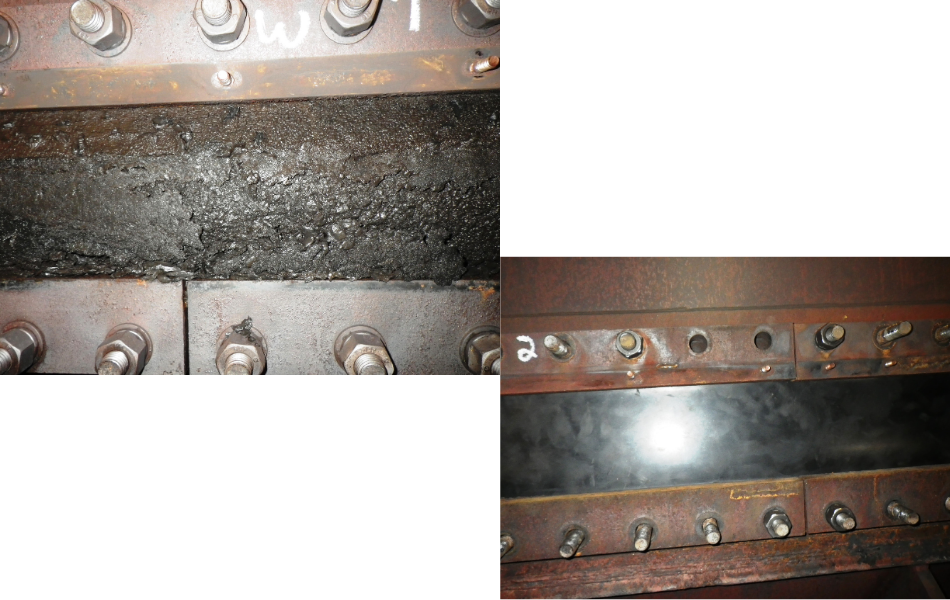

Don’t wait to replace that OLD, CRACKED, or LEAKING Expansion Joint!
Failure of your steam inlet expansion joint can lead to unexpected, costly shutdowns. You are looking at downtime, repair costs, and lost operations. American Efficiency Services has the experience and state-of-the-industry products to make sure that doesn’t happen.
S-Flex® & S-Flex II®
Our S-Flex® is designed to replace rubber “dog bone” type expansion joints, easily expand or compress to account for any misalignment of the receiving bars, and its flexibility permits ease of installation.
Our S-Flex II® belt and hardware system is an affordable alternative for replacing an existing metal bellow-type system or rubber “U” design.
Interested? Sound like what your plant needs?
Contact AES to learn more about the S-Flex® and S-Flex II® designs. Discover our recommendations for replacing an expansion joint, which S-Flex® design is right for you, and how replacements now can save major costs.
Table of Contents
When Should My Expansion Joint be Replaced?
First things first: when should you replace your expansion joint? AES recommends regular inspections, particularly toward the end of life expectancy, to verify the belt’s integrity. Regular inspections can help prevent downtime and lost operations. With expert crews completing inspections, we can confidently recommend what your next course of action should be.
Inspection Methods from AES Include:
- Helium inspection with mass spectrometry leak detection (the most common and can be done with the unit online)
Visual and dimensional verifications
Material hardness analysis
With every AES inspection, you receive a thorough report of our findings, recommendations, estimates, photos or videos, and more. Don’t get caught with a failure on your hand – our experts can help.
Learn More About Steam Inlet Expansion Joint Replacement & Repair Services
Preventive Maintenance for Your Condenser Steam Inlet Expansion Joint
Performing recurring inspections on an interval basis allows plant personnel to conduct trend analyses and make informed decisions on the condition of the material. Don’t just schedule inspections when the unit is near the end of its lifespan or you’re ready for a replacement expansion joint.
It’s also far less costly in the long run to be proactive and schedule maintenance rather than having to be reactive to a catastrophic failure of your condenser steam inlet expansion joint that could cause an unexpected shutdown and lead to unforeseen economic impacts.
What is the Difference Between the S-Flex® and S-Flex II®?
S-Flex®
The S-Flex® steam inlet expansion joint is designed for applications where an existing conventional rubber ‘dog bone’ is currently installed and intended to be a like-for-like replacement. Our innovative S-Flex® design overcomes many issues inherent in the rigid conventional design.
The most noteworthy design enhancement of our S-Flex®, and part of its namesake, is the preformed, “S” shaped web that allows for adjustability to the overall height during installation.
S-Flex II®
The S-Flex II® steam inlet expansion joint system is designed for new construction and will be included in the original design package of the steam surface condenser.

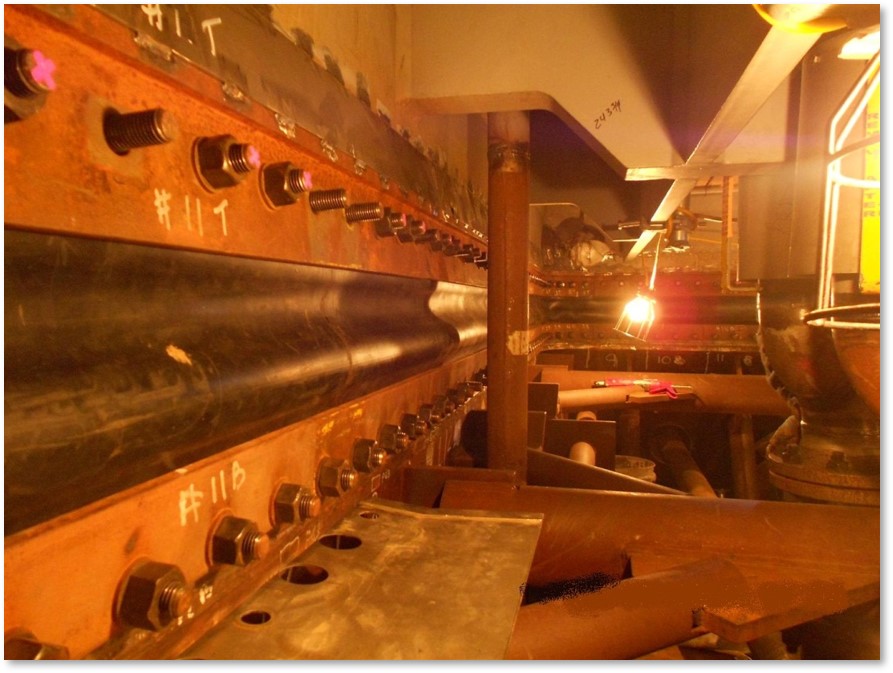

We also utilize our S-Flex II® system for alternative applications such as replacement of an existing system (for example, a stainless-steel bellows or rubber “U” type expansion joint) in an operating plant. AES’s S-Flex II® steam inlet expansion joint system incorporates additional features, building upon the successful foundation of its predecessor.

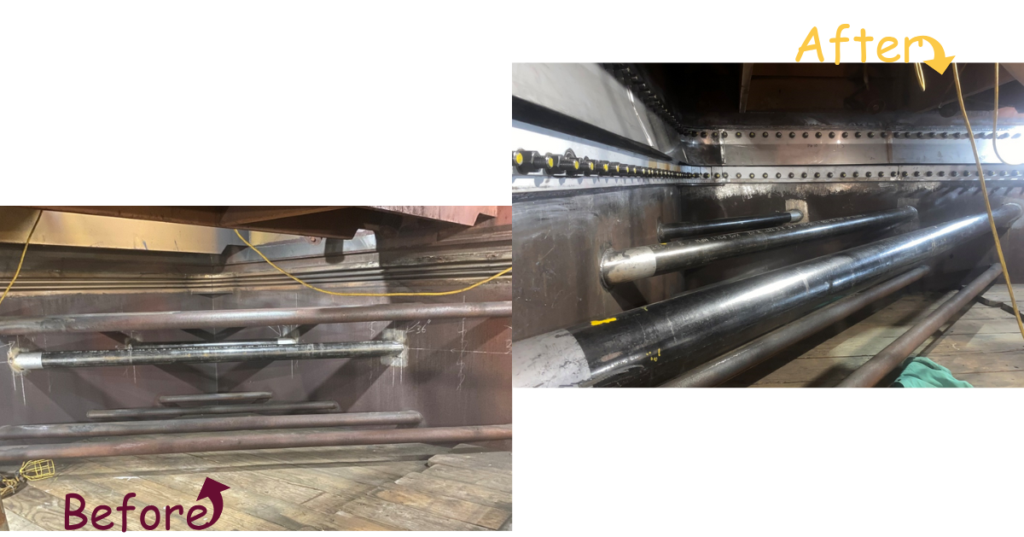

The versatility of AES’ S-Flex II® design is well suited as an alternative field retrofit approach compared to an in kind replacement of an existing metal bellows type system. It is engineered to be installed within the span of the existing metal bellows system, with minimal intrusion to the steam turbine exhaust path and demolition or removal of existing components.
Request More Info and Get a Quote Today
Don’t wait until a minor crack turns into a major shutdown. With AES’s proven S-Flex® and S-Flex II® solutions, you can ensure long-term reliability, smoother installations, and peace of mind for your plant operations.
Let our team help you stay ahead of costly failures with products engineered for performance and durability. Contact AES today to schedule an inspection or request a quote—and keep your operations running without interruption.
Frequently Asked Questions
When should I replace my steam inlet expansion joint?
Expansion joints should be replaced when inspections reveal cracks, leaks, or loss of integrity. AES recommends regular inspections, especially toward the end of the belt’s life expectancy, using methods such as helium leak detection, visual checks, and material hardness analysis.
What are the main differences between S-Flex® and S-Flex II®?
S-Flex® is a like-for-like replacement for rubber “dog bone” expansion joints and features an adjustable “S” shaped web for easier installation. S-Flex II® is designed for new construction or as a retrofit replacement for systems like metal bellows or rubber “U” joints, offering enhanced features and minimal disruption during installation.
What are the risks of delaying expansion joint replacement?
Delaying expansion joint replacement can lead to catastrophic failure of the condenser steam inlet expansion joint, causing unexpected plant shutdowns and significant economic losses.
How can preventive maintenance benefit my expansion joint system?
Preventive maintenance through recurring inspections allows trend analysis, helps identify early signs of wear, and reduces long-term costs by avoiding emergency shutdowns. Our team can stay on top of maintenance to help you stay informed.
How do I request more information or a quote for AES expansion joints?
You can contact AES directly to schedule an inspection or request a quote. Our team will provide details on S-Flex® and S-Flex II® solutions to ensure reliable, long-term performance for your plant operations.
American Efficiency Services
American Efficiency Services was founded in 2001 to provide quality, satisfaction-guaranteed helium leak detection services to the power generation marketplace. AES has grown in sales, staff, and scope each year since its founding and now has offices in Maryland, Missouri, Florida, and Texas to serve customers across the nation – and the world – 24 hours a day/7 days a week.
